Bridges

This is the only remaining covered bridge in Ontario and was designed by John Bear in 1880, on the authority of Woolwich Township Council, to replace an earlier bridge over the Grand River. Built a year later by John and his brother, Benjamin, the 198-foot bridge was covered to protect the wooden flooring and frame against the elements. Known locally as the Kissing Bridge, it later came under the jurisdiction of Waterloo County. In 1937 the province assumed responsibility for the Guelph-Elmira Road, including the West Montrose Bridge, and its floor and sub-structure were subsequently rebuilt and reinforced.

The bridge underwent major repairs in 1999. Light traffic still crosses the bridge daily, including horses and buggies. Horses typically fear rushing water and often become startled as they approach bridges. However, a horse will trot up to the opening of a covered bridge and clip-clop through, reassured by the side walls and the light at the end of the tunnel. The bridge is often referred to as "The Kissing Bridge" because it is enclosed and the soft light provides a feeling of intimacy for the romantic.

Please note: While the bridge is a public space and historic landmark, the surrounding grounds are not. The grass areas surrounding the bridge are owned by residents. Please respect their private property.

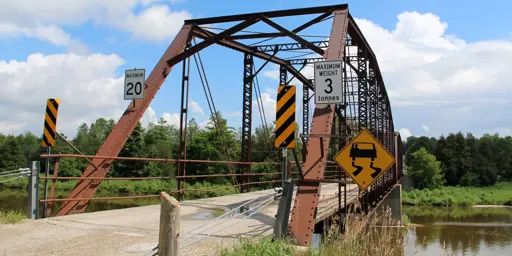

With its lacy riveted steel frame of side trusses, cross beams and sway braces, this bridge stands majestically 14-feet high above the Grand River. Fishermen, canoeing enthusiasts, hikers and horse & buggy travelers enjoy this romantic and scenic bridge. It is a two-span single-lane structure supported by three concrete pier abutments. The bridge is 333 feet long with a 3 tonne load limit.  At one time, the decking  was wood planking, sometimes dubbed a rumble bridge.  Today the deck is made up of 2 x 4 spruce laminated on edge. Steel beams and wooden nails hold the wood in place.

Built in 1913, this bridge is a rural survivor; even though steel bridges are on their way out because of aging, load limits, and other factors, we hope that this steel bridge will continue to serve this area. The roads in the Winterbourne Valley are surrounded by impeccably-kept Old Order Mennonite farms, and since the farms can be accessed from either side of the bridge it is not likely to be replaced.

PLEASE NOTE: This bridge is CLOSED to all traffic including pedestrian and bicycle access.

This seven-span concrete low level bridge is located west of the Village of St. Jacobs on Woolwich Township Road 21. The bridge is adjacent to the St. Jacobs Dam. The first dam on this site was built in the 1840s to provide power for a sawmill. The wooden dam was later replaced by a concrete structure. The one-lane road surface is only about two feet above the normal river level, and since the river floods each year, there are no railings on the bridge.

The current bridge was built in 1962 by members of the Old Order Mennonite community for a cost of $2500; all of the labour was provided by volunteers. The bridge was designed so water and ice would not do any damage during flooding. Other bridges constructed on this site had been washed away or damaged by high waters.

If you visit this bridge today and see that the orange gates are closed, it means that water is flowing over the bridge surface.  The gates were installed after a dramatic rescue of a young couple who had been swept off the bridge by fast flowing waters while crossing in a horse-drawn buggy.

The idea of a railway connecting Waterloo and Elmira was talked about for many years. To move the project forward, Woolwich Township offered a $5000 grant to a railway company to extend a branch line to Elmira however, when completed in 1882, the line stopped in Waterloo. In 1889, another offer was made to the Waterloo Junction Railway Company to extend their rail line to Elmira.  Woolwich Township offered a bonus of $28,000 and Elmira offered $10,000 on the condition this line would be completed by December 1, 1891 and one train would run each day.

Building the two-span railway viaduct over the Conestogo River was the most expensive part of the railroad construction. The quarried limestone blocks used in the bridge abutments were hauled by team and wagon.

For the best view of the bridge, walk along the Mill Race in St. Jacobs.
